Brief Introduction

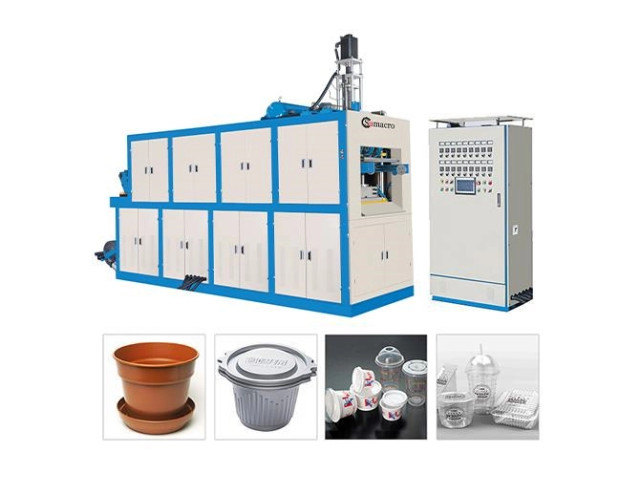

This machine adopts servo motor feeding and stretching, PLC programming, touch screen operation, stable operation, low noise and high efficiency.
It is suitable for the production of various disposable products, such as plastic bowls, plastic cups, trays, cup lids, snack boxes, plate, food container, coffee cup, yogurt cup, jelly cup, lid flower pot, egg tray, and so on.
The technical parameters
|
Model |
SMC-720(H) |
SMC-750(H) |
|
Applicable sheet |
PP, PS,PVC,PET,PLA |
PP, PS,PVC,PET,PLA |
|
Sheet thickness |
0.25-2.5mm |
0.25-2.5mm |
|
Sheet width |
450-750mm |
550-780mm |
|
Maximum forming depth |
150mm |
175mm |
|
Maximum forming area |
720×320mm |
750×390mm |
|
Molding speed |
≦ 28times/minute |
≦ 28times / minute |
|
Air pressure |
0.6-0.7MPa |
0.6-0.7MPa |
|
Air consumption |
2.0m³/min |
2.0m³/min |
|
Water Consumption |
0.5m³/h |
0.5m³/h |
|
Rrated power |
105kw |
120kw |
|
Power supply |
AC 380V,50Hz Three-phase four-wire |
AC 380V,50HzThree-phase four-wire |
|
Size |
L4600*W2000*H2500mm |
L4600*W2000*H2500mm |
|
Weight |
6.8 T |
7.2 T |
