Brief Introduction

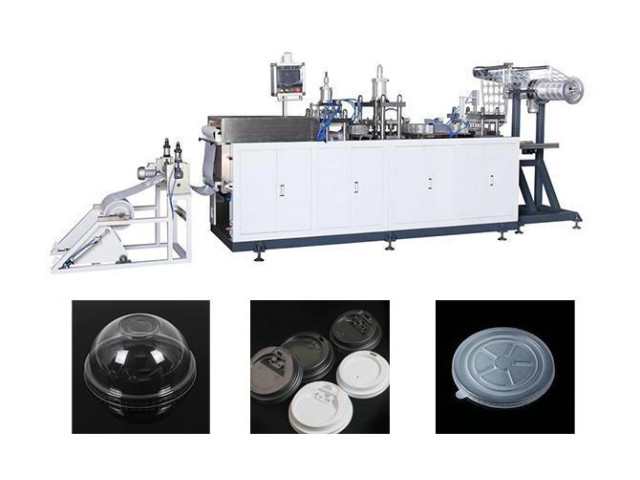

SMC-450L lid thermoforming machine is the molding machine specially used to manufacture disposable plastic cup lids which has three stations: thermoforming, cutting, and product stacking, it is specially used in the production of flat caps, arch caps and heterosexual caps.
The Main Parameters
|
Suitable Sheet |
PVC.PS.PET |
|
Punching Frequency |
20-35time/min |
|
Max Forming Depth |
50mm |
|
Max. Forming Area |
260mm*450mm |
|
Air-compressor |
<0.2m3/min |
|
Pressure |
0.4-0.7MPa |
|
Power |
20KW, 380V/50Hz, 3Phase |
|
Overall Dimension |
4200*850*1700mm |
|
Weight |
2000Kg |
